SIRUBA FLATLOCK DEVICE

CAR
CMR

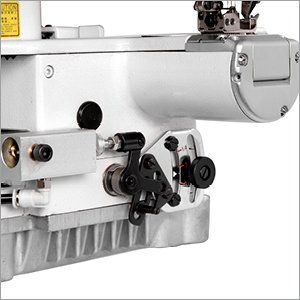

SAR

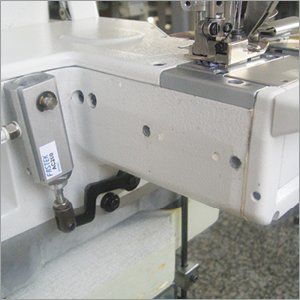

CAR / SAR

Pneumatic Condense Stitching Device

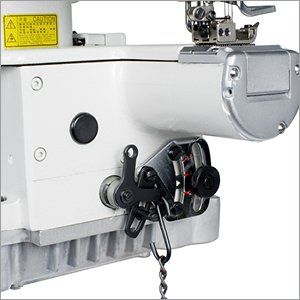

CMR

Manual Condense Stitching Device

By reducing the strokes of feed dog, at the beginning and the end of sewing, condense stitching reinforces the stitches. This enhances sewing sturdiness and quality. Basic model is controlled by pedal. Electric and pneumatic controls are optional. Exclusive gauge sets is required.

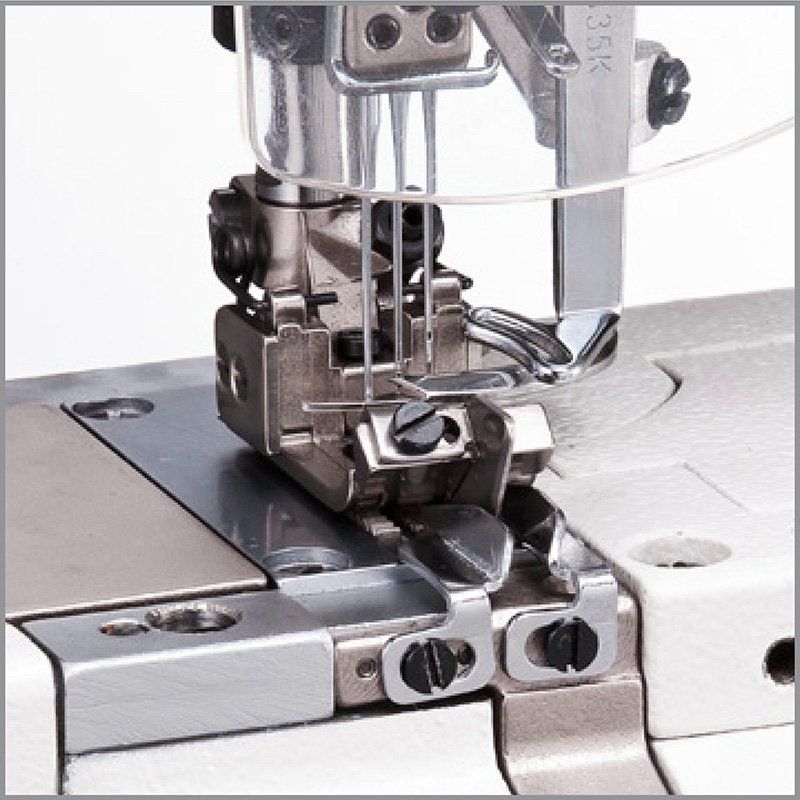

CCK

CC

Overlock-Seam Covering (Fold-down / Flattening Type)

  1. Overturned seam covering for medium to the heavy fabric after 4 thread plain seaming.
  2. Suitable for neck openings, sleeves, cuff or bottom of sportswear, T-shirts, etc… With fabric guide and special presser foot making sewing easy and more efficient.

Available Model:C007K/KD-W322, C007L-W325

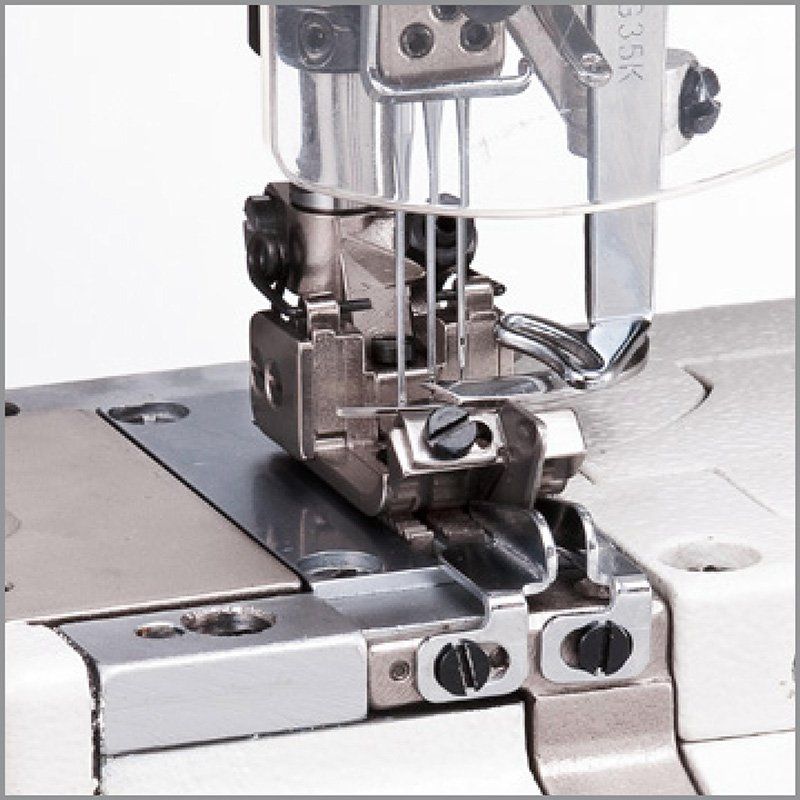

CE

CE

Overlock-Seam Covering (Fold-down / Flattening Type)

  1. Bulging seam covering for medium fabric after 3 thread plain seaming.
  2. Suitable for neck openings, sleeve, cuff or bottom of sportswear’s, T-shirts, etc.… With fabric guide and special presser foot making sewing easy and more efficient.

Available Model: C007K/KD-W322, C007L-W325, C007L-U325

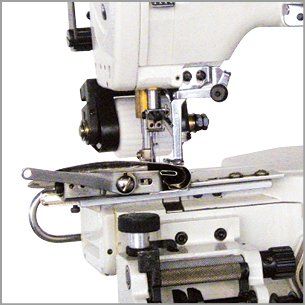

CFC

CFC

Elastic Hemming

Elastic hemming evenly length and elasticity are controlled by gear box. Great for seam covering with two or three plies hemming binder on elastic for waistband or leg opening of briefs and shorts’, etc.…

Available Model: C007K-W542

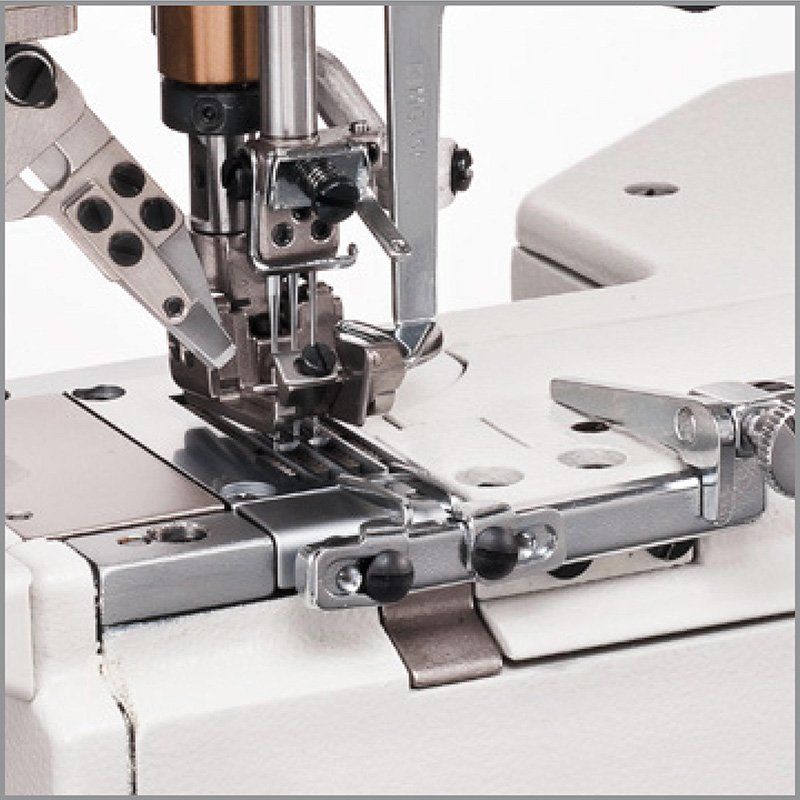

CH

CH

Hemming

Suitable for the bottom hemming of T-shirt, underwear, the cuff of children’s garment, etc… Able to adjust the width of hemming set to fit demands, easy operation.

Available Model: C007K/KD-W121, C007K/KD-W122, C007K/KD-W123, C007K/KD-W162, C007L-W125, C007L-W165, C007L-U125, C007JP-W125

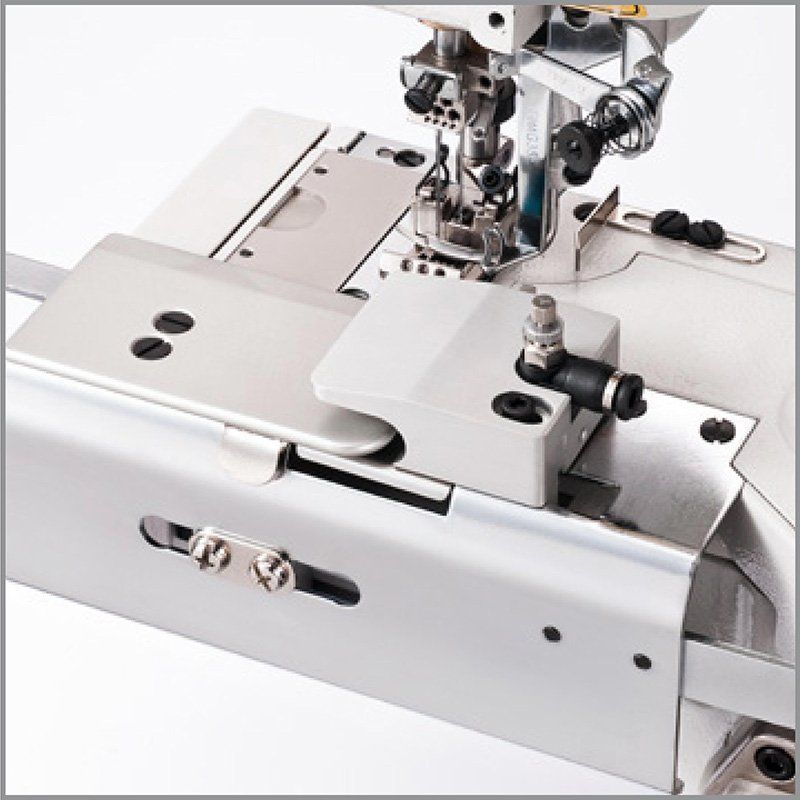

CHK

CHK

Hemming

Suitable for the bottom hemming of T-shirt, underwear, the cuff of children’s garment, etc… Able to adjust the width of hemming set to fit demands, easy operation.
CHK-A is for normal type machine
 CHK-UT is for auto trimmer type machine

Available Model: C007KD-U131

CHP
CY

CHP | CY

[2 IN 1] Pneumatic Hemming / Tubular Elastic Tape hemming

With Left Edge Trimmer With a pneumatic driving folder to fold the fabric and insert elastic smoothly, left-hand side fabric

trimming before hemming increases sewing quality & efficiency. For hemming sleeve opening and bottom of underwear’s, T-shirts, or sportswear’s, etc.…

Available Model: C007K/KD-W822

CL
CLA

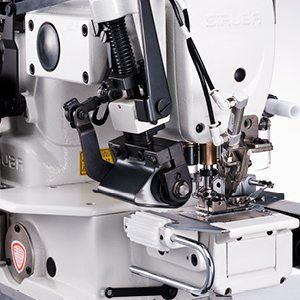

CL | CLA

TAPE BINDING


1. Pulls the fabric and elastic after sewing and makes sewing fast, flat, and smooth without wrinkles.
2.The attachment includes both CL(CL19+CL53) and CLA(CL20+ CL52). CLA is a flat type for normal material, and CL is a serrated type for elastic or lace, etc…
3.For fine-tuning purposes, the machine will be equipped with one rear puller depending on actual demand, the other one will be placed in the accessory box.

 Available Model: C007K/KD

CQ
CY

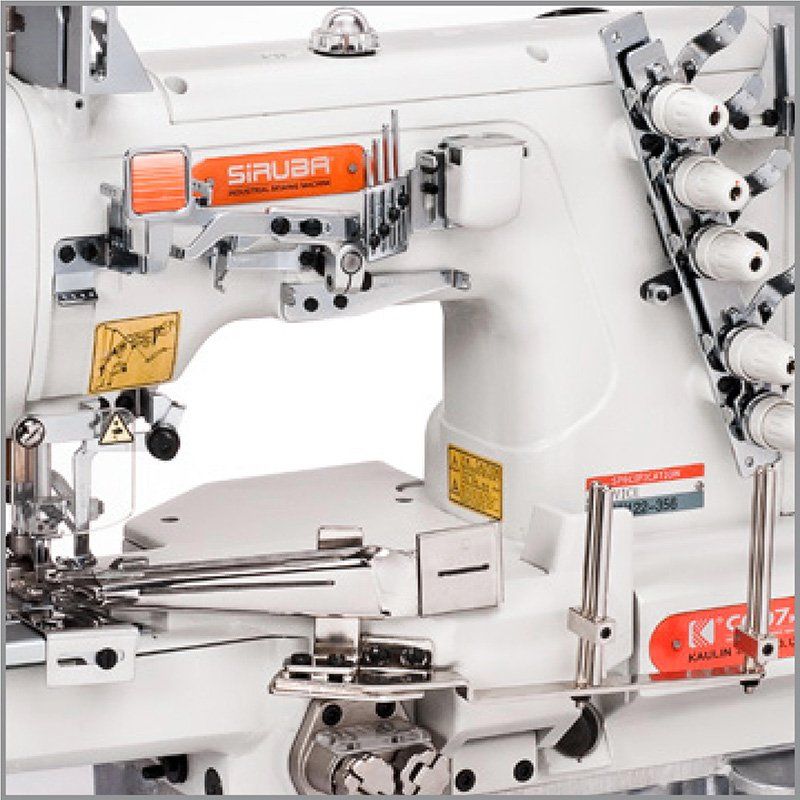

CQ | CQA

TAPE BINDING

  1. For tape binding on openings of leg or neck of underwear’s, T-shirts, etc.…
  2. If a purchased machine with a CQ device, an FG device will also be included. If only CQ device were
     purchased, no FG included.
  3. Binder’s standard tape size is 1-3/8″ wide and the finished size is 1/2″ wide in 3 folds. Please remark
     if need another size when ordering, delivery and cost will be recalculated.
  4. Ways to order the device

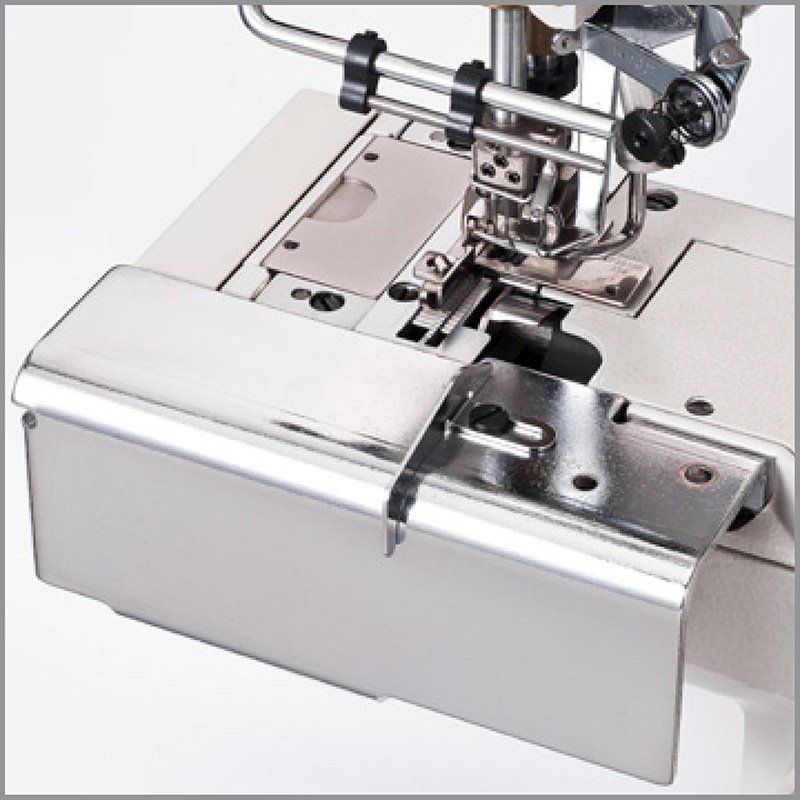

CR

CR

Right Hand Side Trimmer

The right-hand side wastes fabric trimming with the waste suction device makes the fabric edge aligned to the seam and keeps the working area clean.

Available Model:C007K-W522, C007K/KD-W532, C007L-W535, C007L-U535

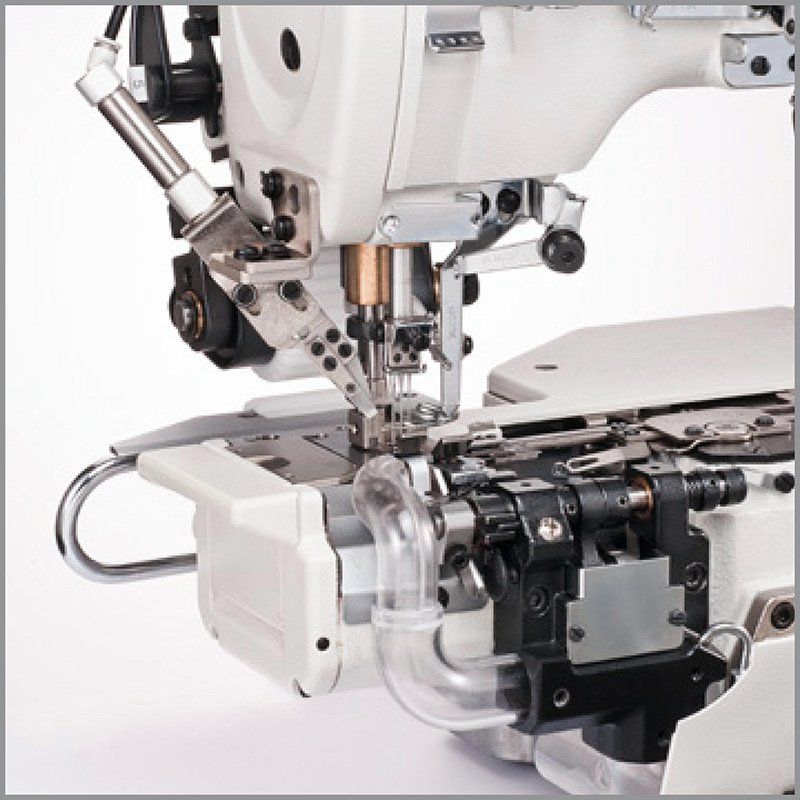

CRL

CRL

Left-hand side trimmer

Left-hand side fabric trimming makes fabric edge aligned to seam.

Available Model: C007K/KD-W812(A), C007K/KD-W822, C007L-W815, C007L-U815, C007L-W825, C007L-U815, C007JP-W815, C007JP-U815, C007JP-W825, C007JP-U825

CSA

CSA

Iron case suction

  1. Two-way suction (rear and front section).1/4 horsepower more than normal standard. (rear section is for thread trimmer; front suction is for fabric waste).
  2. Quiet. 5dB lower than the normal standard.
  3. Low temperature. 18 in Celsius lower than normal standard.
  4. Space efficiency. 10% space saved than normal standard.
  5. Easy assembly. 50% time saved for assembly.
  6. Easy to clean, easy to assemble/disassemble, completed dust collection.
  7. Air pressure can be adjusted as needed.

Available model: F007K/FR, C007K/CR, C007K/CRL

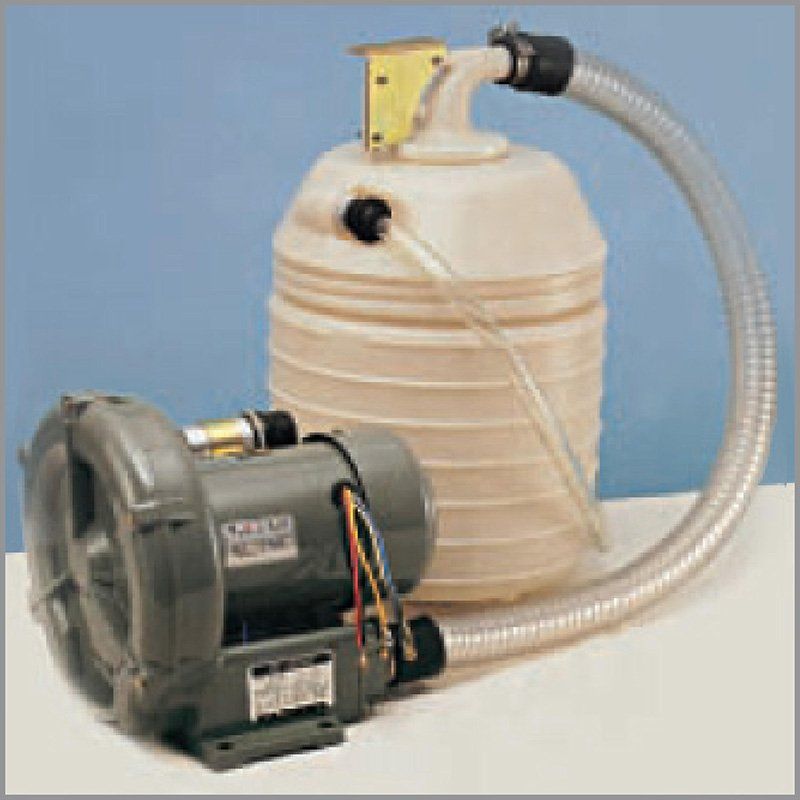

CSB

CSB

Plastic tank suction

  1. One-way suction, 1/4 horsepower more than other brands. (for rear suction thread trimmer)
  2. Quiet, 5dB lower than normal standard.
  3. Low temperature. 10% lower than normal standard.
  4. Space efficiency. 25% space saved than normal standard.
  5. Easy assembly. 25% time saved for assembly.
  6. Easy to clean, easy to assemble/disassemble, completed dust collection.
  7. Air pressure can be adjusted as needed.

Available Model: F007K/FR, C007K/CR, C007K/CRL

CW-1

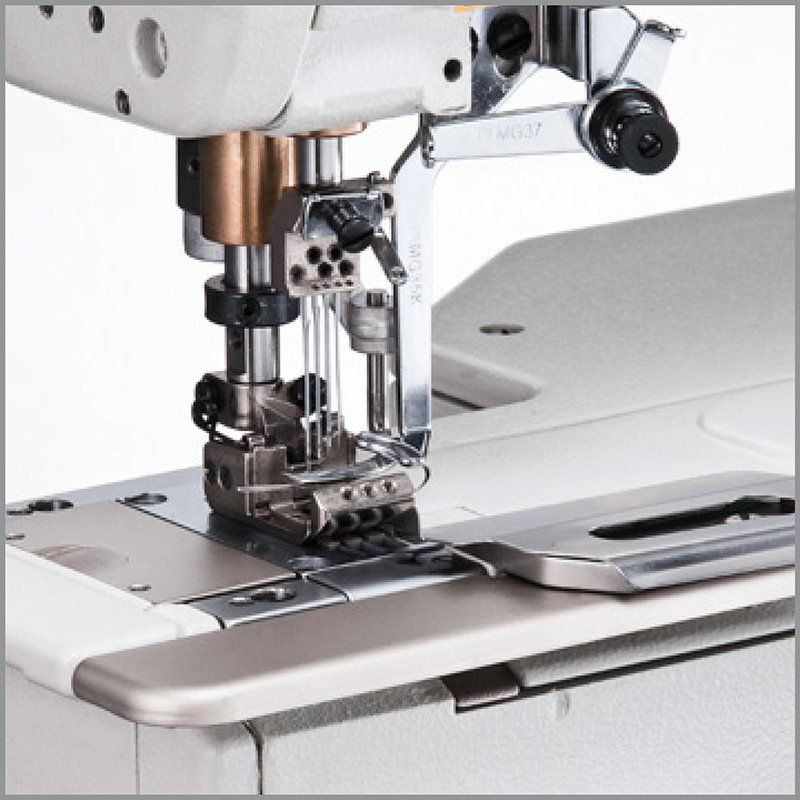

CW

Four-needle flat seaming

For flat seaming 2 pieces of fabrics on men’s briefs, fabric guide included.

Available Model: C007K/KD-W922

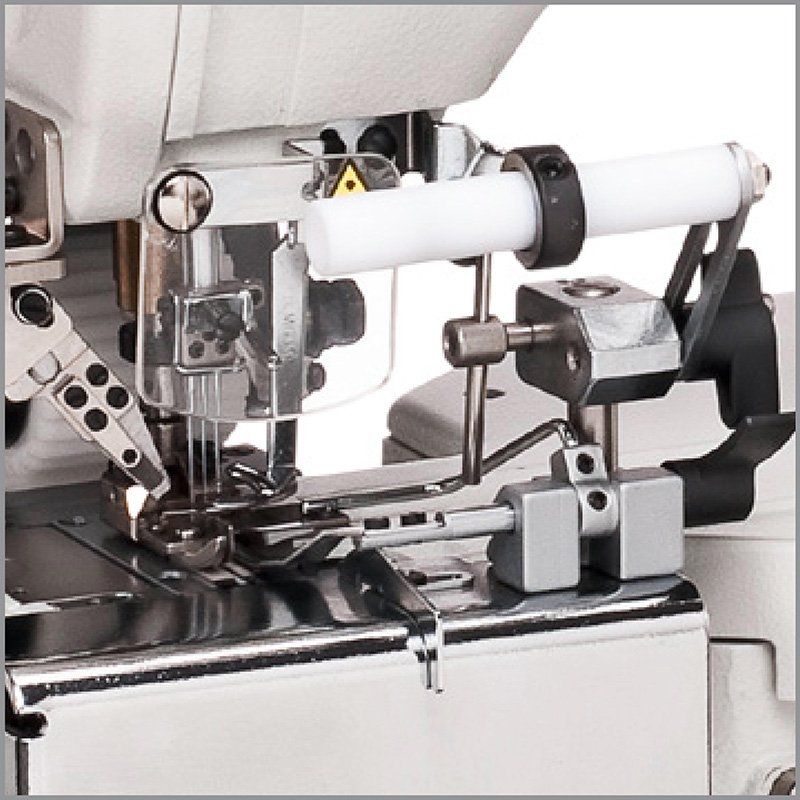

CX

CX

PNEUMATIC ELASTIC INSERTING

For tubular elastic or lace waistband attaching on men’s or women’s briefs, with right-hand side fabric trimming to increase sewing quality and efficiency.

Available Model: C007K/KD-W532,C007L-W535, C007L-U535

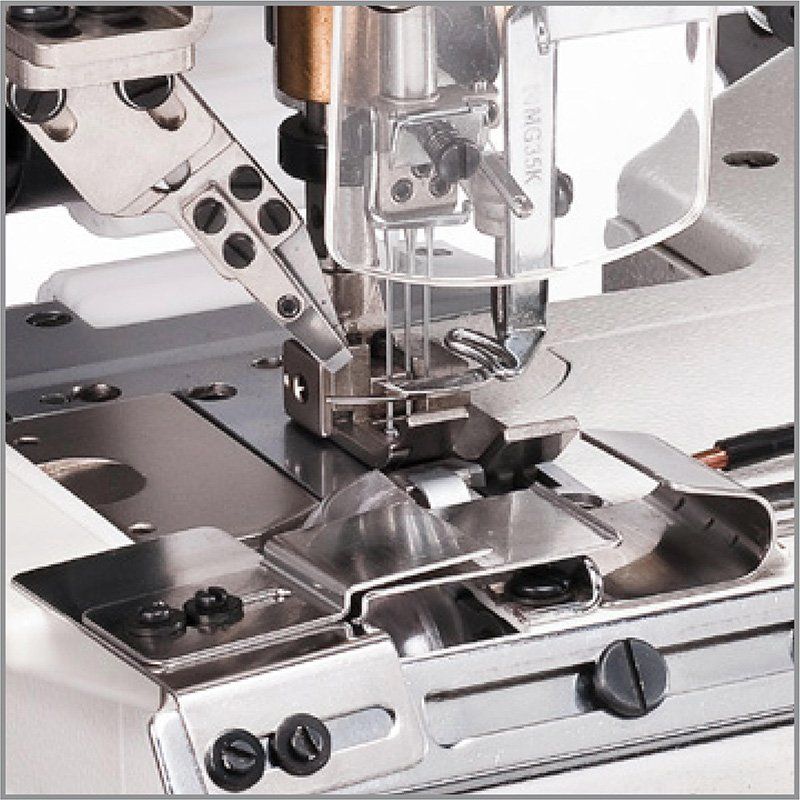

CY (1)

CY

Pneumatic elastic inserting

The pneumatic tubular elastic inserting device is easy to operate thereby increases sewing efficiency.

Available Model: C007K-W822, C007KD-W822

CZ

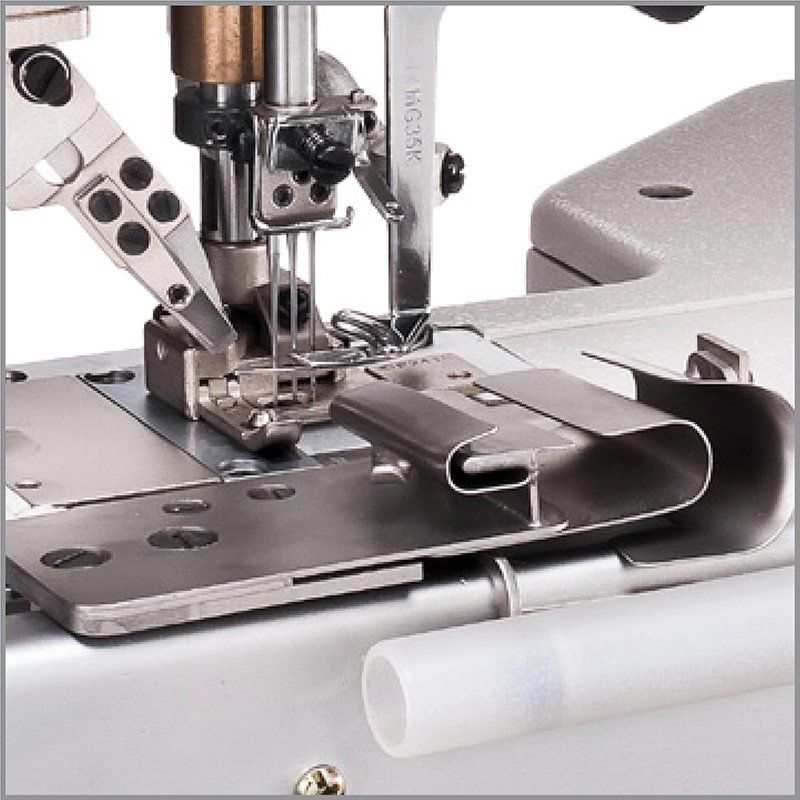

CZ

Pneumatic elastic inserting

Attaching tubular elastic tape onto the waistband, suitable for briefs. For using this device, CL and RLQ must be equipped together.

Available Model: C007K/KD-W152

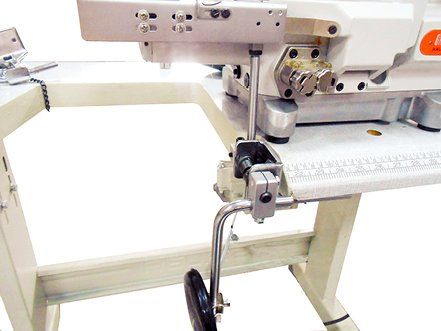

CZP

CZP

Manual Elastic Inserting

Attaching tubular elastic tape onto the waistband, suitable for briefs. For using this device, CL and RLQ must be equipped together.

Available Model: C007K/KD-W152

DC-DF-DS

DC/DF/DS

Modularized Direct-Drive Servo Motor

Interlock machine equipped with the modularized direct-drive servo motors to be more flexible for diversification.

 Applicable machine , Factory code , Series number

FA

FA

Side electric tape feeding

  1. With the electronic switch to control the feeding length of tape, elastic, or lace and make smooth sewing.
  2. Tape feeding is on the right side of the control box.

Available Model: C007K/CQ, C007K/CQA, C007KD/CQ, C007KD/CQA,
F007K/FQ, F007K/FFD,F007K/FFP, F007K/FSM, F007KD/FQ, F007KD/FFP

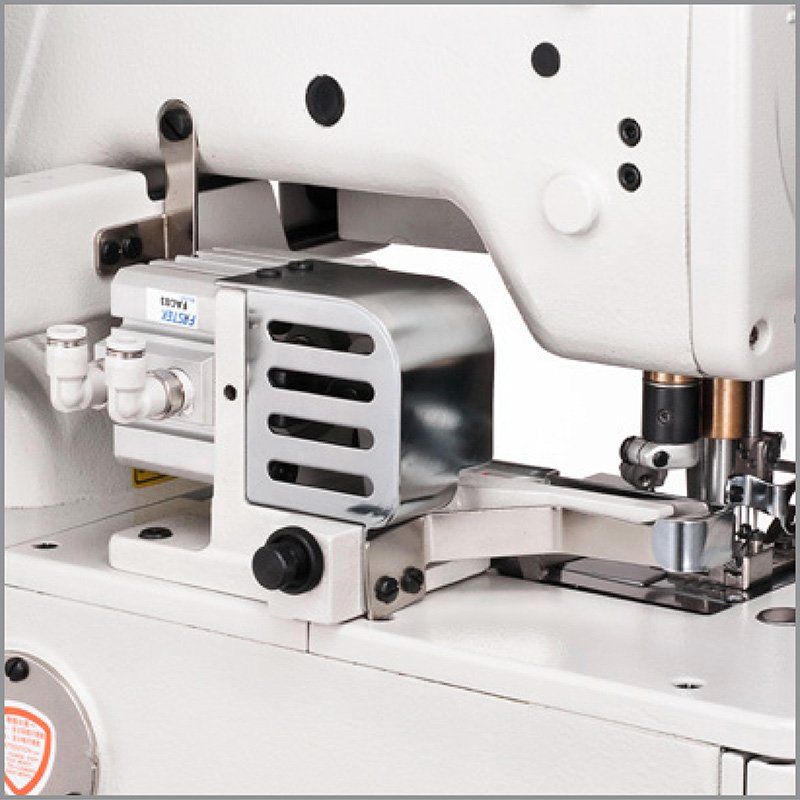

FAC
FAC

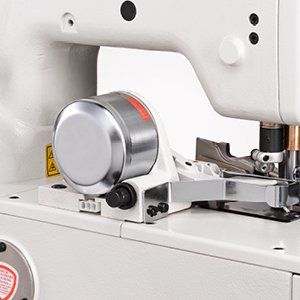

FEC
FEC
FNC (1)

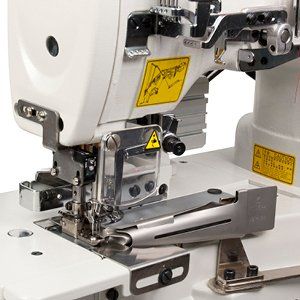

FNC/FSC
FNC (1)
FNC

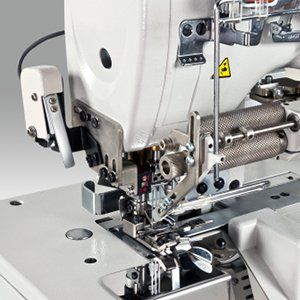

FSC (1)
FSC

FC

Rear Cutter Series

AvailableModel:  F007K/FQ,F007K/FE,F007K/SMK,F007K/STC,F007K/FR,F007K/FR/FQS

FBP

FBP

Belt loop seaming

Mass production for belt loop by using stripped tape.

  1. Normal W122 type can be changed to FBP type with FBP-256 or FBP-264 for belt loop sewing.
  2. Different size binders and needles may be required depending on different fabrics. Please refer to the below table and remark when ordering

FDC

FDC

COVERING SEAMING DEVICE

  1. Overturned seam covering for medium to the heavy fabric after 3 or 4 thread plain seaming.
  2. Suitable for neck openings, sleeves, cuff or bottom of sportswear, T-shirts, etc… With fabric guide and special presser foot making sewing easy and more efficient.

Available Model: F007K-W322, F007KD-W322

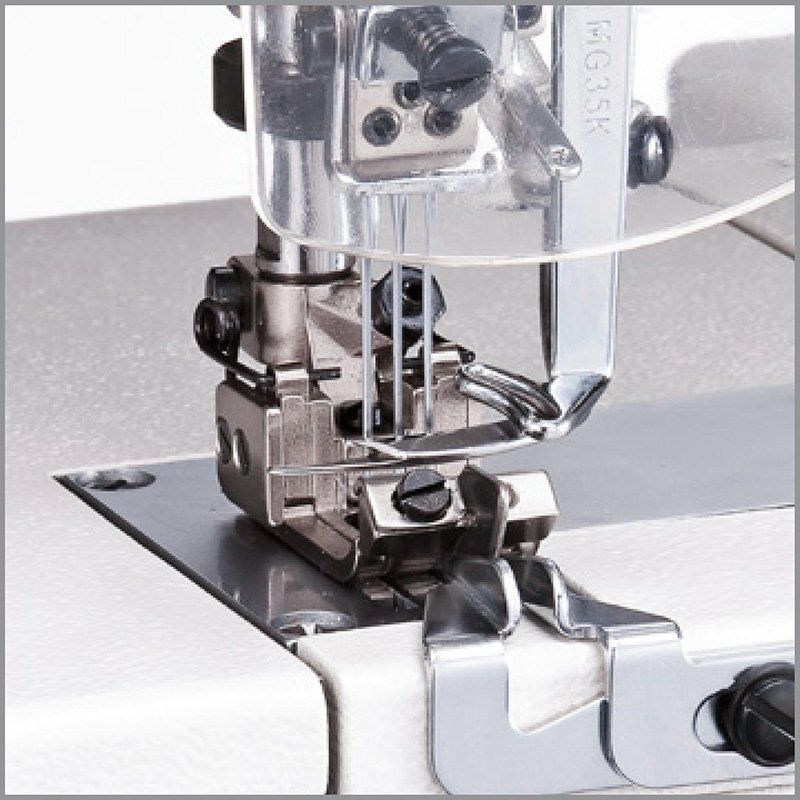

FDE

FDE

COVERING SEAMING

  1. Overturned seam covering for medium to the heavy fabric after 3 or 4 thread plain seaming.
  2. Suitable for neck openings, sleeves, cuff or bottom of sportswear, T-shirts, etc… With fabric guide and special presser foot making sewing easy and more efficient.

Available Model: F007K-W322, F007KD-W322







FE

FE

ELECTRIC TYPE ELASTIC FEEDING

  1. Elastic feeding ensures even length and elasticity, controlled by the electronic digital control box.
  2. The maximum feeding width of elastic is 2-1/2″.

Available Model: F007K-W512, F007K-W522, C007K-W512, C007K-W522

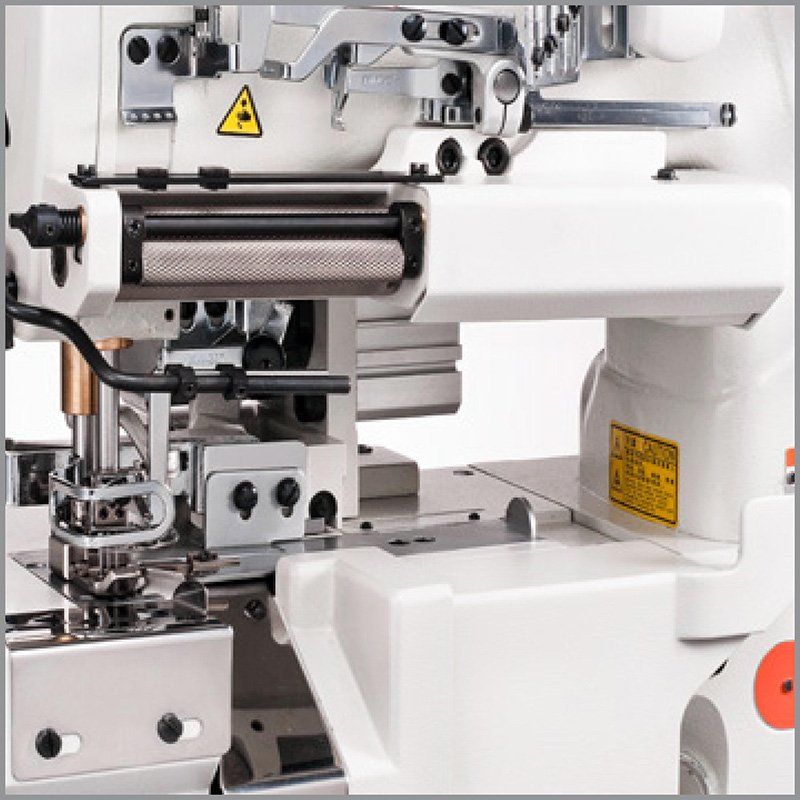

FFC

FFC

MECHANIC TYPE ELASTIC FEEDING

  1. Elastic feeding ensures even length and elasticity controlled by gear set.
  2. The maximum feeding width of elastic is 2-1/2″.

Available Model: F007K-W512, F007K-W522, C007K-W512, C007K-W522



FFC

FFD

Mechanic type elastic feeding & binding

  1. Elastic feeding ensures even length and elasticity controlled by a gear set with elastic tape side-motion controller for sewing the beginning and end of elastic tape onto the waistband, leg opening of briefs, etc.…
  2. The maximum width of the elastic is 1/8″ to 1/4″.

Available Model: F007K-W222



FFD

FFP

MECHANIC TYPE ELASTIC FEEDING & BINDING (LEAF SPRING)

  1. Elastic feeding ensures even length and elasticity controlled by leaf spring with elastic tape side-motion controller for sewing the beginning and end of elastic tape onto the waistband, leg opening of briefs, etc.…
  2. The maximum width of the elastic is 1/8″ to 1/4″.

Available Model: F007K-W222, F007KD-W222



FHA-1

FHA

HEMMING DEVICE

Suitable for the bottom hemming of T-shirt, underwear, the cuff of children’s garmented… Able to adjust the width of hemming set to meet different demands, easy operation.

Available Model:
F007K-W121, F007K-W122, F007K-W123, F007K-W162, F007KD-W121, F007KD-W122, F007KD-W123, F007KD-W162

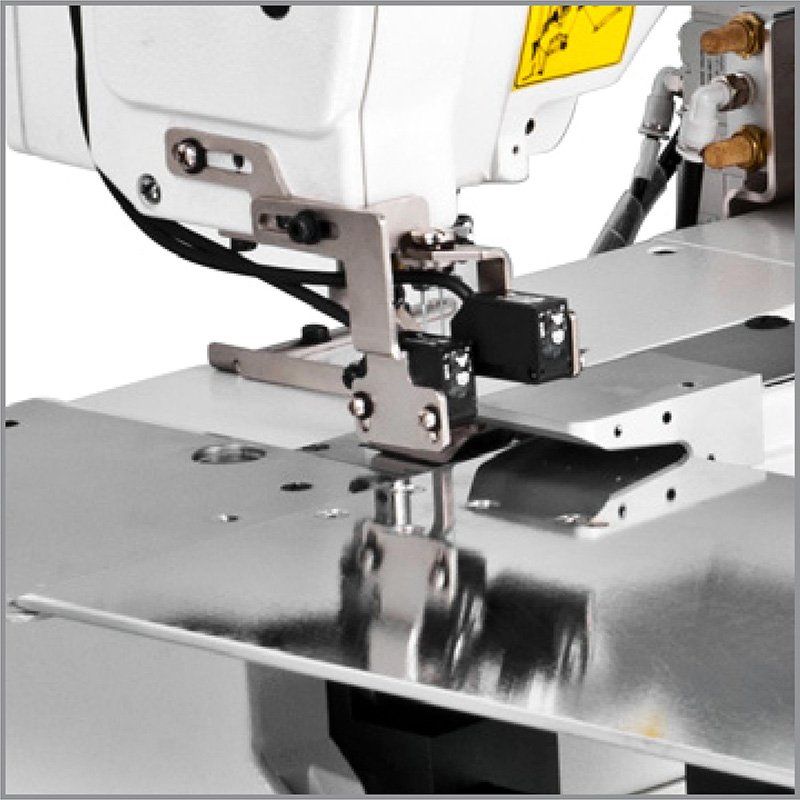

FHK

FHK

2 NEEDLE 3 THREAD AUTOMATIC SLEEVE HEMMING

  1. The pneumatic automatic feeding and folding device is for T-shirt cuffing and hemming, which can save manpower and upgrade technique.
  2. Customers can adjust the width of the hemming folding edge and the horizontal width between the folding fabric and the left needle as required. Since there is no need to cut the fabric in advance material cost can be saved.
  3. The electric eye can detect feeding, edging, and presser foot lifter automatically. After finishing the action, the operation will stop automatically.
  4. The maximum productivity: 6000 ~ 7000 pc(cuff)/8 hours.

Available Model: F007KD-U131, F007KD-U132



FL

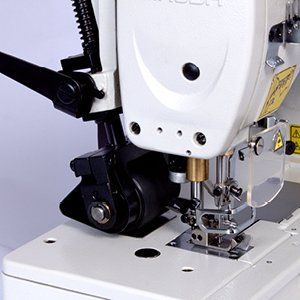

FL

Rear puller

Suitable for light to medium fabric, such as bedsheets, quilts, towels, etc. With one set of adjustable bottom hemming device, FHA(K). (not suitable for the hard and slip fabric which is much heavy)

Available Model: F007K-W121/FHA, F007K-W122/FHA, F007K-W123/FHA, F007K-W162/FHA, F007K-W222/FQ F007KD-W121/FHA, F007KD-W122/FHA, F007KD-W123/FHA, F007KD-W162/FHA, F007KD-W222/FQ



FP

FP

Crinkle seaming

To sew a decorative convex stripe on sportswear, jeans or other clothes can also add an extra stripe inside convex to increase the effects of convexity and decoration.

Available Model: F007K-U122-232, F007KD-U122-232

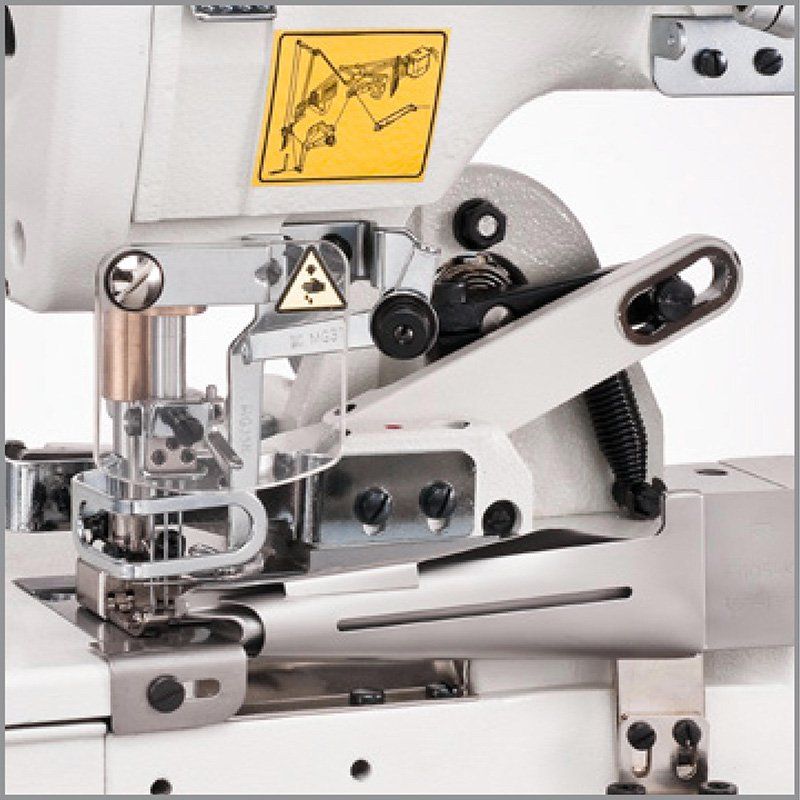

FQ

FQ

Tape binding

For tape binding on openings of leg or neck of underwear, T-shirt, etc.

  1. For tape binding on openings of leg or underwear, T-shirt, etc…
  2. If purchased a machine with FQ, we will also attach FG. If purchase FQ device only, no Attached.
  3. Binder’s standard opening size is 1-3/8″ wide and finished size is 1/2″ wide in 3 folds. Please remark if need another size when ordering, delivery date and cost will be re-calculated.
  4.  Ways to order the device:


Available Model:F007K-W222, F007KD-W222

FR

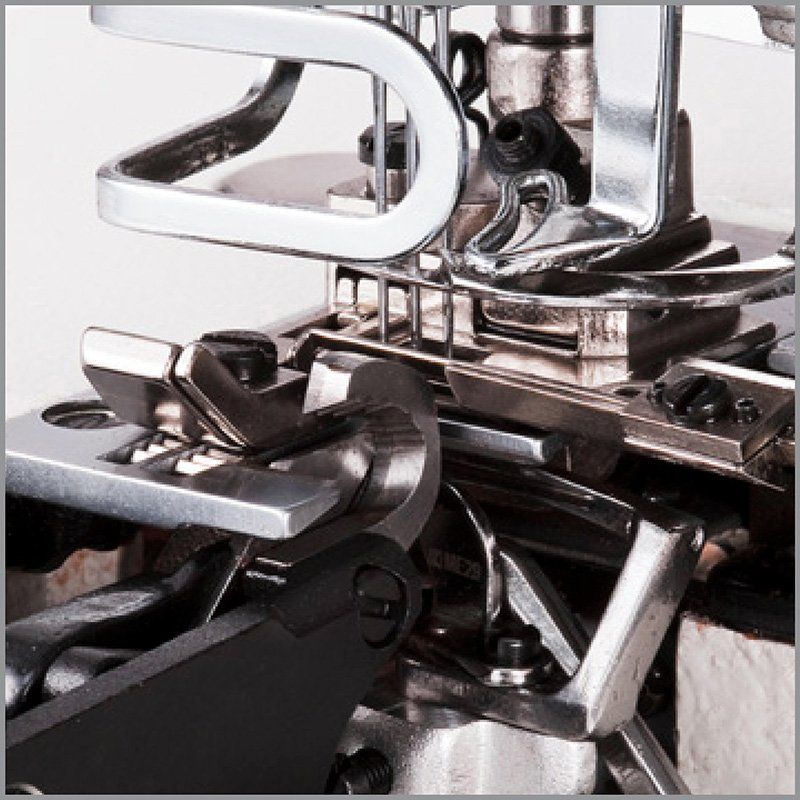

FR

Right-hand side trimmer

The right-hand side wastes fabric trimming, ensures better sewing quality.

Available Model: F007K-W522

FSM02
FSM01

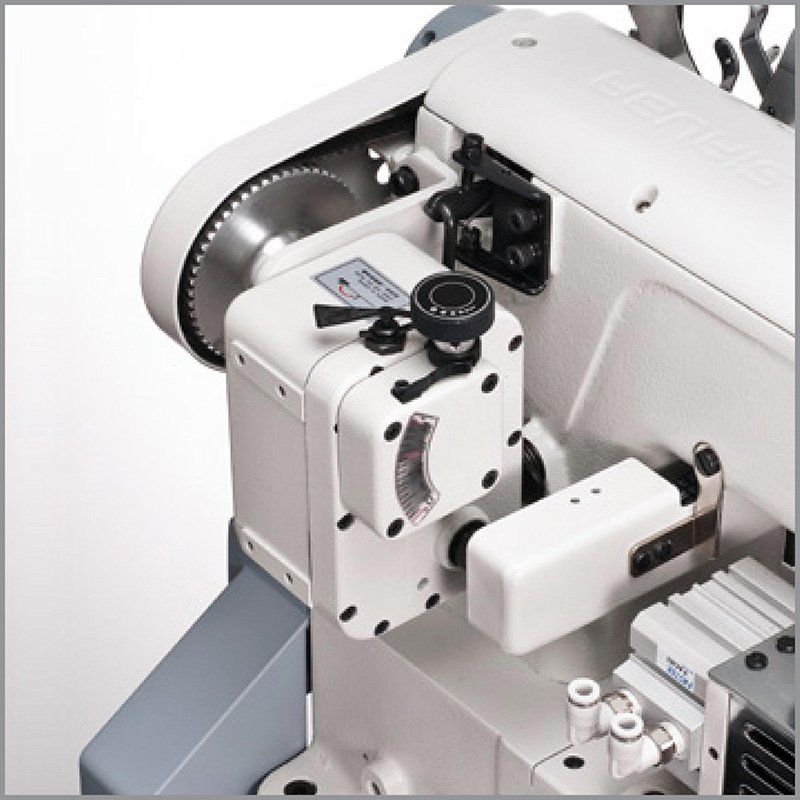

FSM

Ornamental tape binding

Suitable for ornamental tape binding of neck band, bottom or cuff of T-shirt, shirt, etc… Four sets of cam create hundreds of patterns.

Available Model: F007K-W222, F007KD-W222



FSP

FSP

Double looper tape binding

This device is specially designed for tape binding on cross seaming of men’s briefs or sportswear.

Available Model: F007K-U712, F007KD-U712

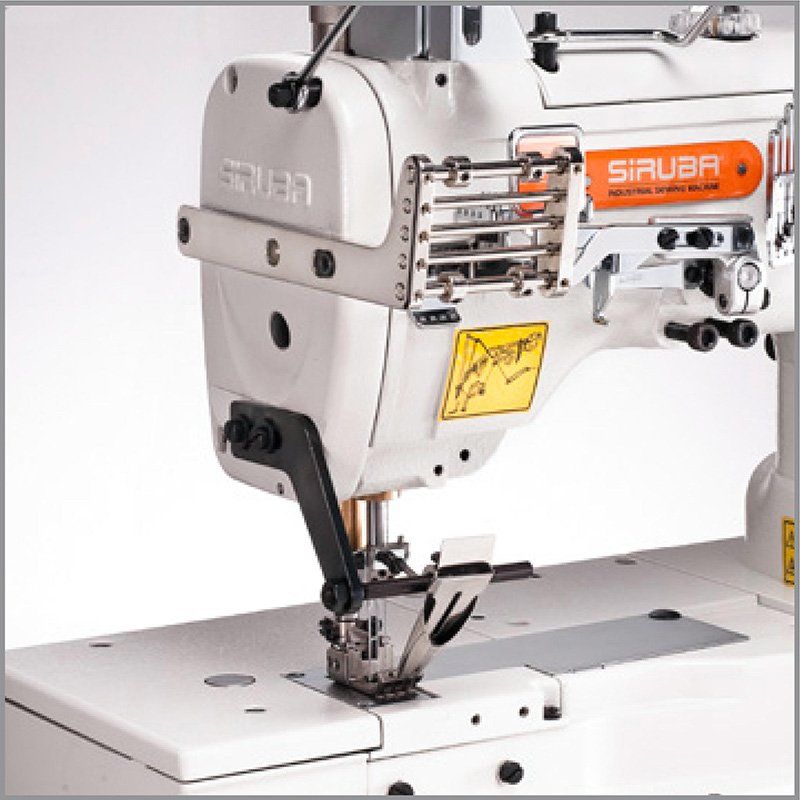

FWP
FW

FSR

LAP SEAMING

The differential ratio of left and right feed dog can be adjusted separately for lap seaming to ensure symmetrical length to both left and the right fabric. Applicable to trousers, casual pants, and jeans, etc.…

Available Model: F007K-U712, F007KD-U712



FY

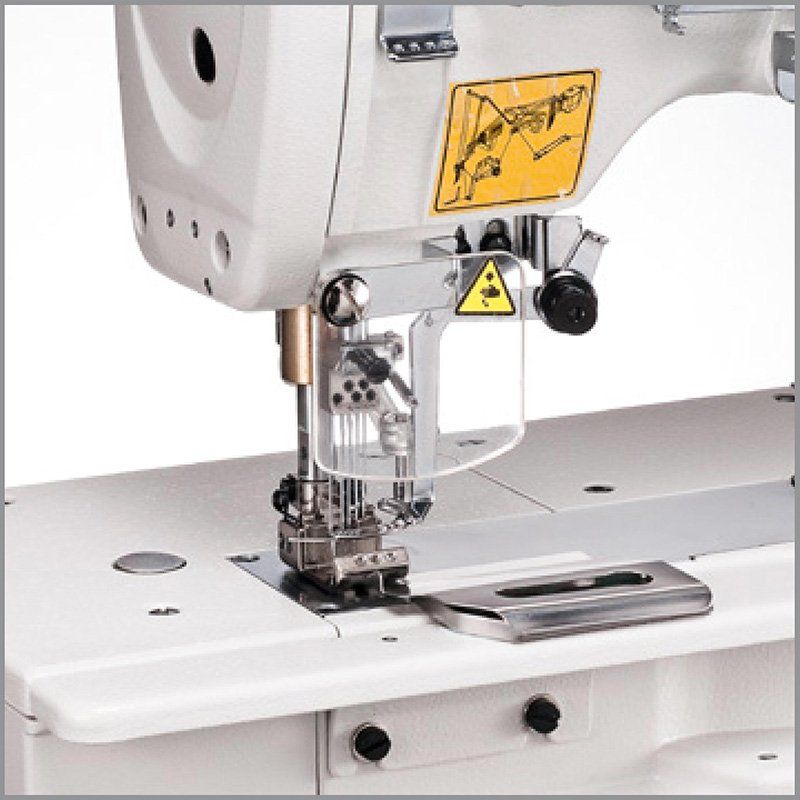

FW | FWP

FLATSEAMER

For flat seaming 2 pieces of fabric, equipped with fabric guide for easy operation.
FWP: Folder(B417R) is optional, for tape attaching.

Available Model: F007K-W922, F007KD-W922

FY

FY

Pocket lining seaming

This is a 3 needles 3 loopers machine, and special for seaming the shell fabric and lining of pocket in trousers or working pants in simple operation to increase sewing quality and efficiency.

Available Model: F007K-W722, F007KD-W722

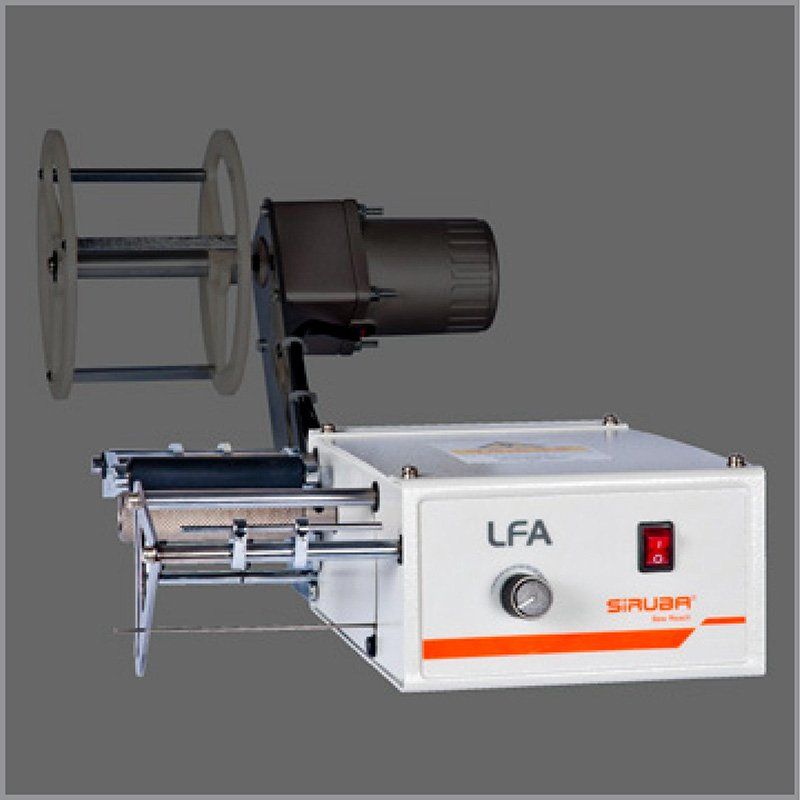

LFA-A

LFA-A

ELECTRIC TYPE UPPER TAPE FEEDING DEVICE

An optional device to be equipped with an LFA (tape feeding device). Untangling the elastic tape by reverse rotation wheel is a pre-feeding process.
 =voltage, 1: 110V, 2: 220V

Applicable model: C007K/FE, C007K/FFC, C007K/CR/FE, C007K/CR/FFC, C007K/CR/FFC, C007KD/FE, C007KD/CR/FE, F007K/FE, F007K/FFC, F007K/FFD, C007KP/CR/FFC, F007K/FFP, F007K/FSP, F007K/FBP, F007K/FWP, F007K/FR/FE, F007K/FR/FFC, F007KD/FE, F007KD/FFP, F007KD/FSP, F007KD/FBP, F007KD/FWP

LF290-A

LF290-A

Untangling Wheel

An optional device to be equipped with an LFA (tape feeding device). Untangling the elastic tape by reverse rotation wheel is a pre-feeding process.
 =voltage, 1: 110V, 2: 220V

Available Model:  MODEL W/LFA

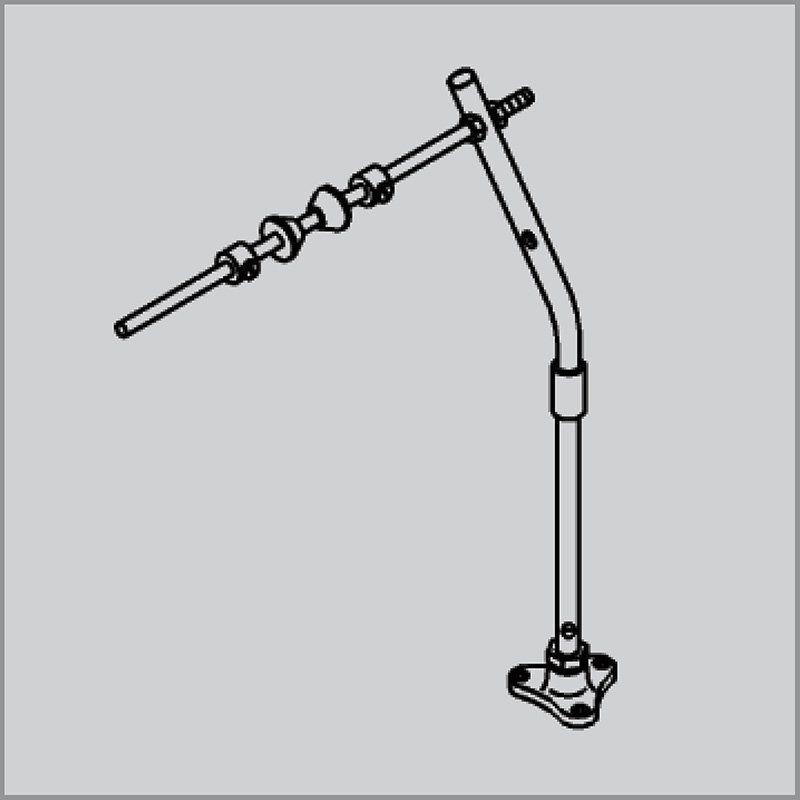

LS (1)

LS-A

Upper tape holder

For top feeding tape or elastic.

Available Model: C007K/FE, C007K/FFC, C007K/CR/FE, C007K/CR/FFC, C007KD/FE, C007KD/CR/FE, F007K/FE, F007K/FFC, F007K/FFD, F007K/FFP, F007K/FSP, F007K/FBP, F007K/FWP, F007K/FR/FE, F007K/FR/FFC, F007KD/FE, F007KD/FFP, F007KD/FSP, F007KD/FBP, F007KD/FWP

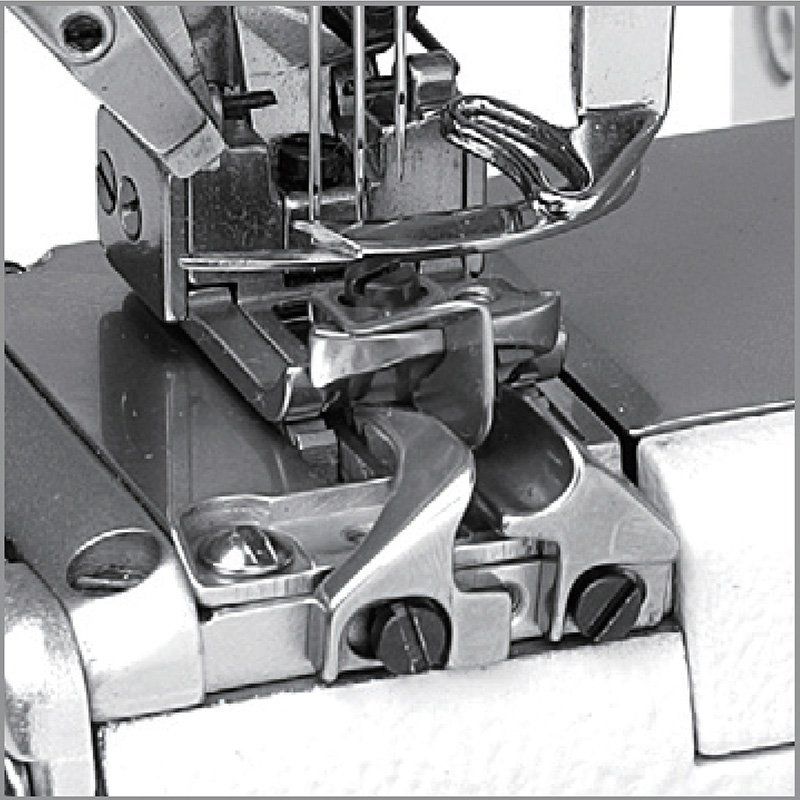

PCC

PCC

Overlock-seam covering (fold-down type)

  1. Overturned seam covering for medium to the heavy fabric after 4 thread plain seaming.
  2. Suitable for neck openings, sleeve, cuff or bottom of sportswear, T-shirt…etc. With a fabric guide and special presser foot, making sewing easy and more efficient.

Available Model: S007K all models, S007KD all models

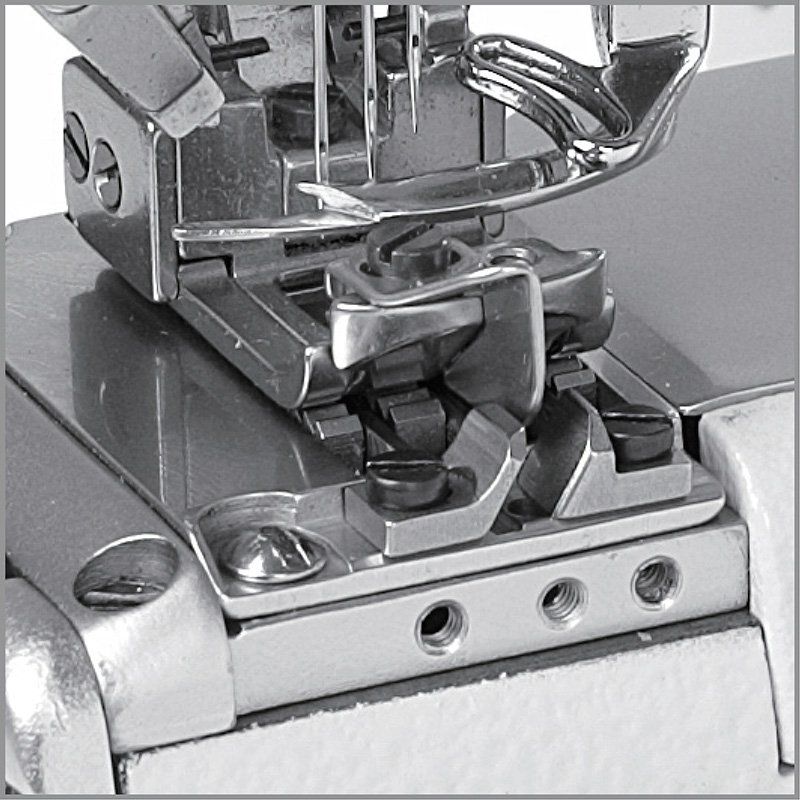

PCD

PCD

Overlock-seam covering (fold-down type)

  1. Overturned seam covering for medium to the heavy fabric after 3 or 4 thread plain seaming.
  2. Suitable for neck openings, sleeve, cuff or bottom of sportswear, T-shirt…etc. With a fabric guide and special presser foot, making sewing easy and more efficient.

Available Model: S007K all models, S007KD all models

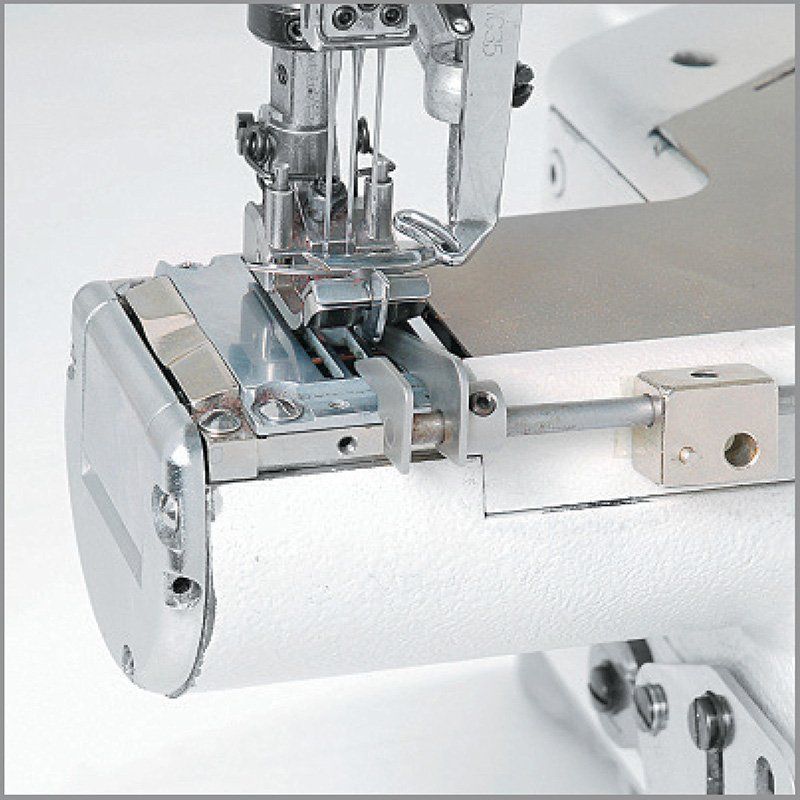

PCH

PCH

Bottom hemming

Suitable for the bottom hemming of T-shirt, underwear, the cuff of children’s garment…etc. Able to adjust the width of hemming set to fit demands, easy operation.

Available Model: S007K all models, S007KD all models

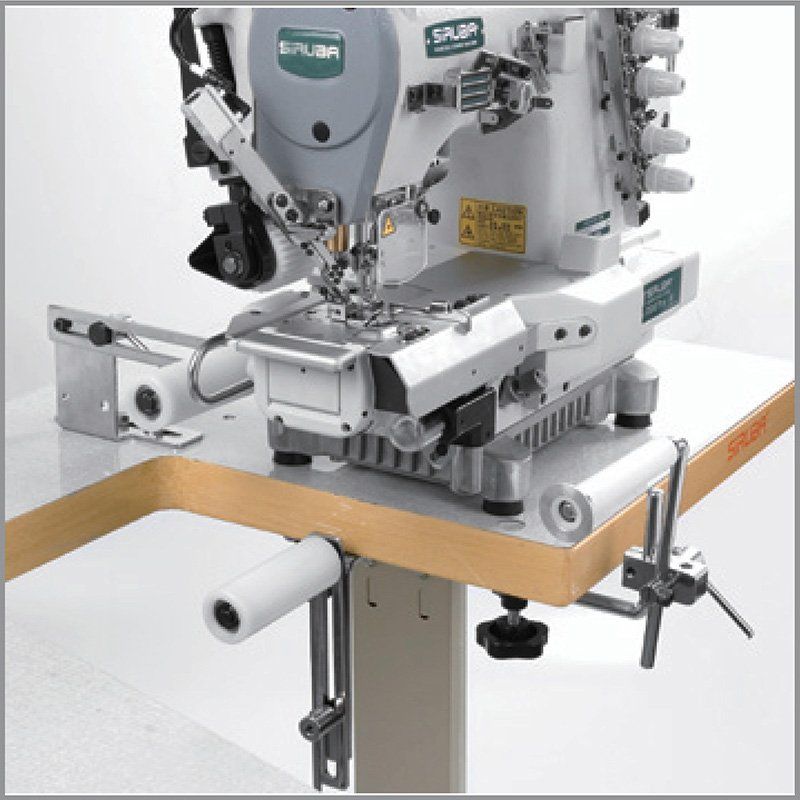

RL (1)

RL

Tubular extending roller (long type)

Specially used to assist with tubular cloth sewing.

Available model: C007K/CY, C007KD/CY, C007L, C007JP

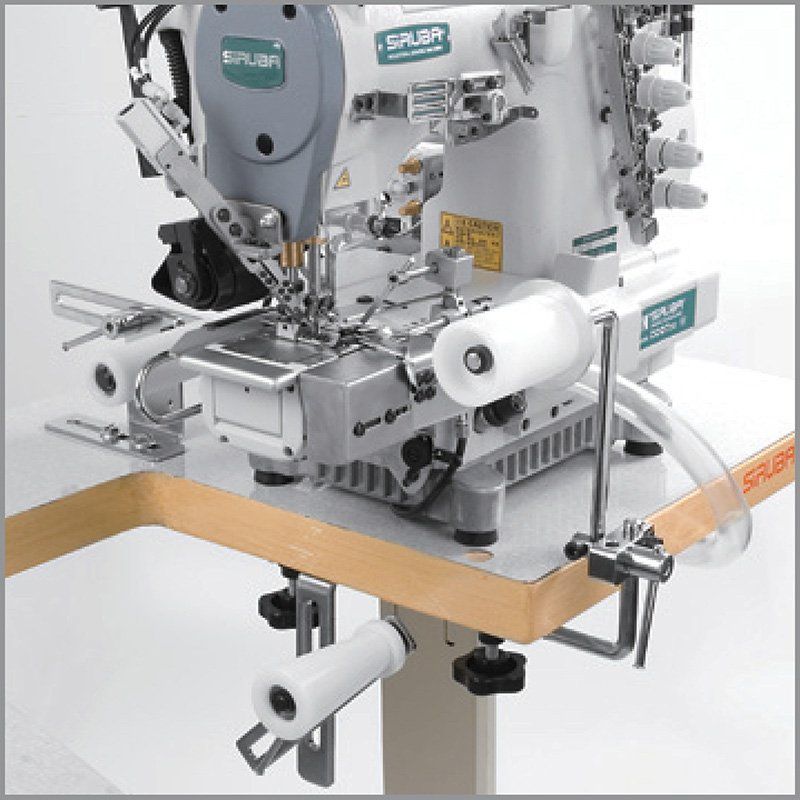

RLP-1

RLP

Tubular extending roller (short + cone type)

Specially used to assist with tubular cloth sewing.

Available Model: C007K/CX, C007KD/CX

RLP-1

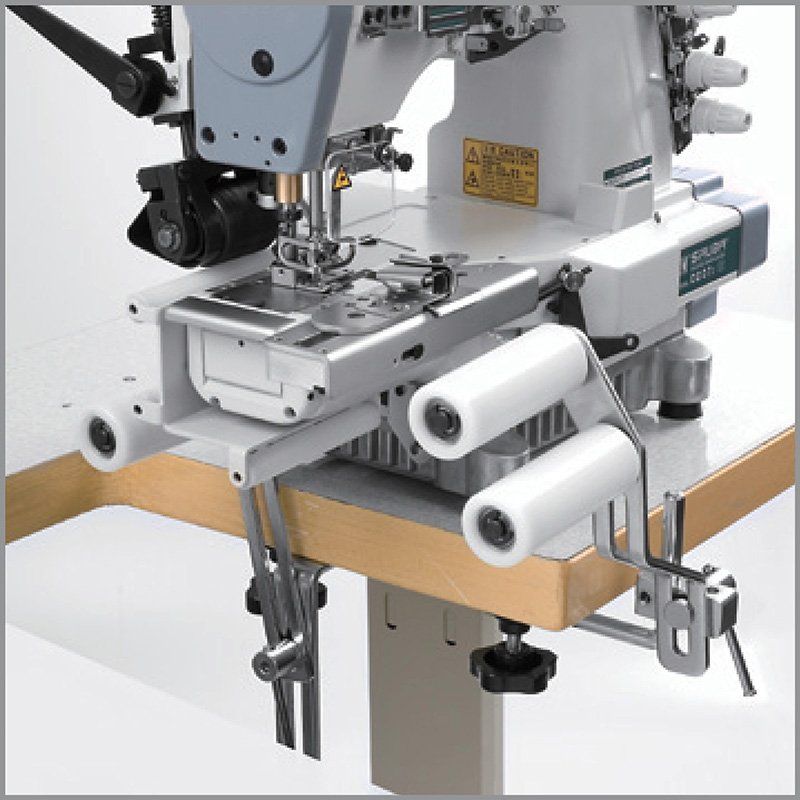

RLQ

Tubular extending roller

Specially used to assist with tubular cloth sewing.

Available Model: C007K/CZ, C007KD/CZ

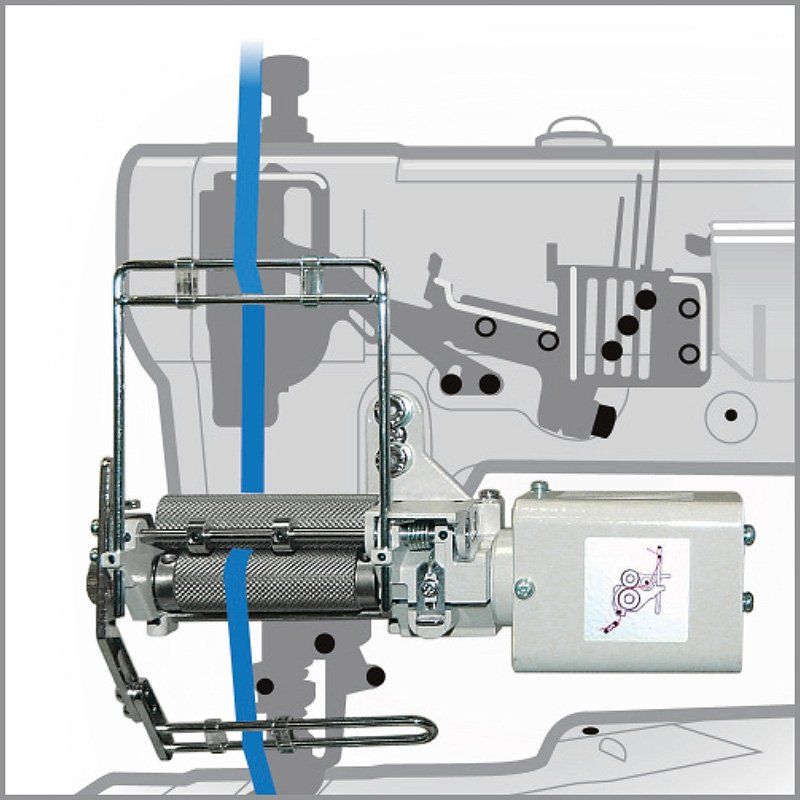

SMK

SMK

Electric Metering type tape feeding

Available Model: C007K-W512, C007K/CR, F007W512, F007/CR



RLQ-1 (1)

SRL

Left-hand side trimmer (for small cylinder bed)

Specially used to assist with tubular cloth sewing.

Available Model: S007KD-W815

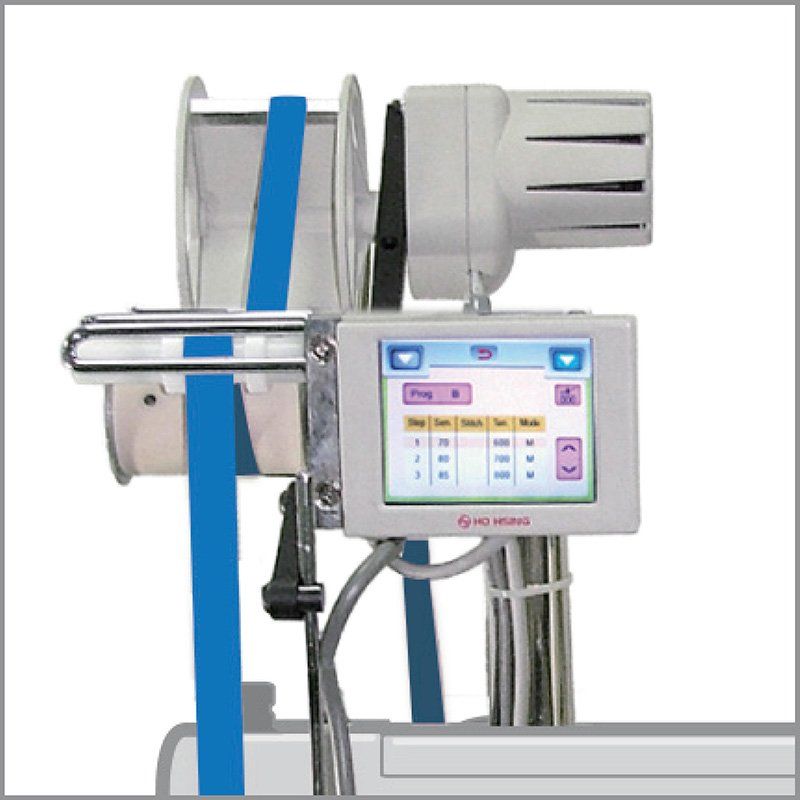

STC

STC

Tension sensor type tape feeding

Available Model: C007K-W512, C007K/CR, F007-W512, F007/CR

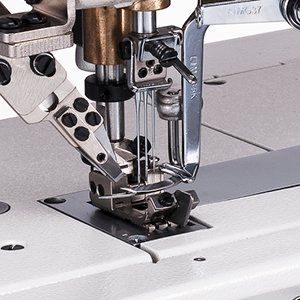

三針_配件-UT1 (1)

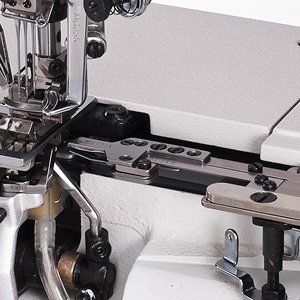

UT2 (1)

UT

Pneumatic automatic top & under thread trimmer

The thread blowing device is included in the accessory box. If the cover stitch thread is not required, users may install a blowing device instead of an upper thread trimmer.
